Description

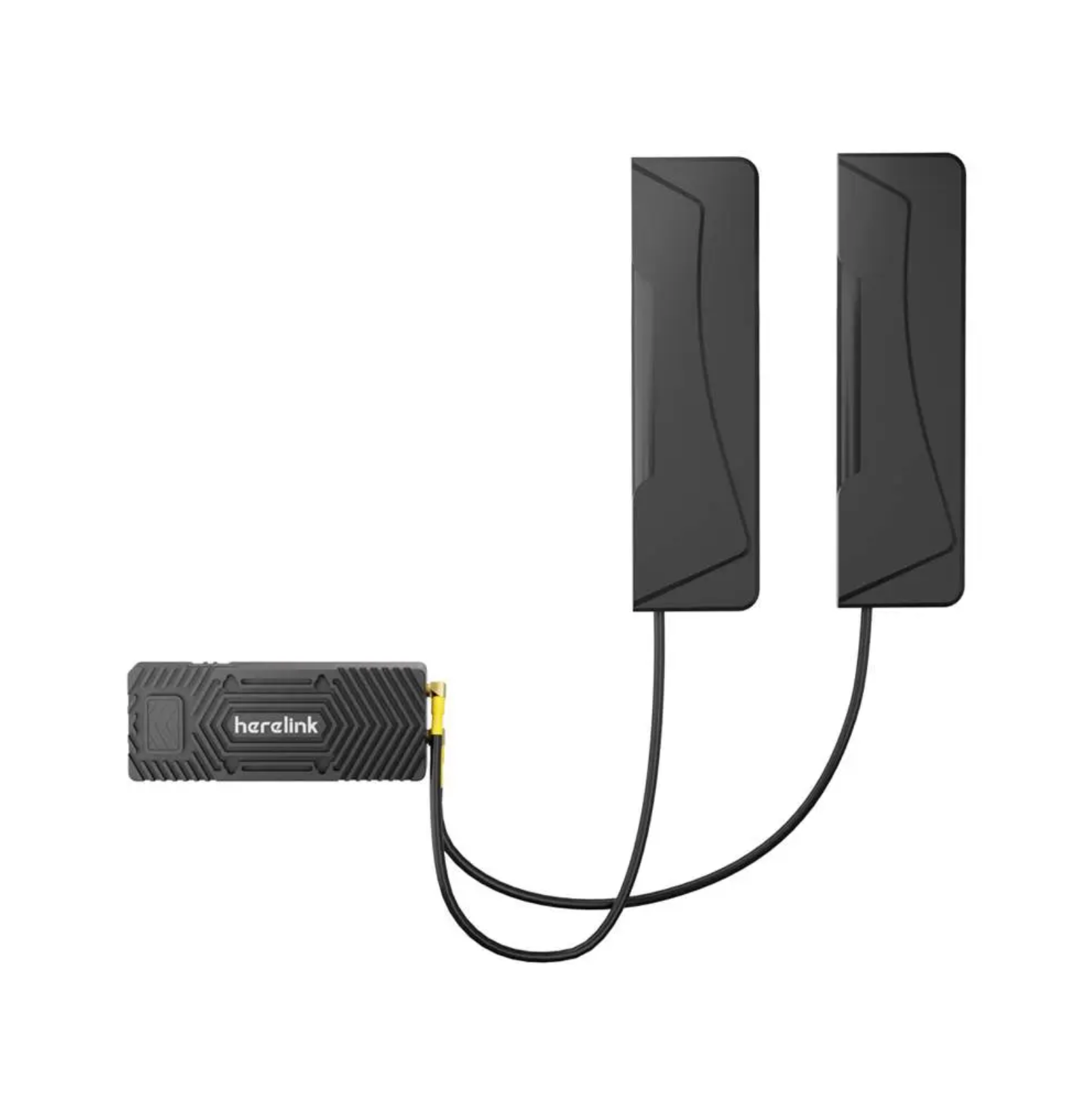

The Herelink Air Unit 1.1 Integrates a data link unit, remote control link, and video display unit into a single device, making a complex device system integrated and miniaturized. This VTX unit features a signal transmission range up to 20KM, minimum latency of 110ms, two HDMI inputs, and supports 720p 30fps, 1080p 30fps / 60fps video format.
V1.1 CHANGELOG
- Ethernet port added
- SD card slot added
Features
- Data Link, Remote Control Link, and Video Display
- PineSync Technology based on S1 Processor
- CubePilot Hex Technology
- 4W Power Consumption
- MMCX antenna jacks
- 7-12V Power Input
- Indicator lights
- ETH Interface
- Micro USB
- SD Slot
Specifications
- Micro USB: Used for debugging and upgrading, support OTG mode**（no need for external power for USB device）**
- Power Input: Recommended supply voltage ~7V: minimum 6V, maximum 12V, and avoid sharing BEC with servos
- MMCX antenna jack 1, 2: Used for signal transmission and ground communication
- ETH Interface（only supported by Air unit 1.1: Network protocol device access
- Indicator light 1，2: Used to indicate state for pairing and video transmission
- Power Consumption: The average power consumption does not exceed 4W
- Manufacturer: HEXAERO PTE LTD. / HEX TECHNOLOGY LIMITED
- SD Slot（only supported by Air unit 1.1: For future usage
- Micro HDMI 1: Camera video signal input (Recommend)
- S.bus Interface: Dual RCout, S.bus1, and S.bus2
- Micro HDMI 2: Camera video signal input
- Button: Used for pairing and state reset
- Signal Bandwidth 20MHz / 10MHz
- Model: Herelink Air Unit 1.1
- UART Interface: 3.3V UART
- FCC ID: 2A596-HX406210
- Size: 78.5×30×15mm
- Voltage Rating: 7-12V
- IC: 28413-HX406210
- SKU: HX4-06210
- Weight: 98g
Includes
- 1x Herelink HD Air Unit V1.1
- 1x Herelink Silicone Ring Set
- 2x Herelink Taoglas Antenna
- 1x Herelink Set up tips card
- 1x Herelink Mounting Plate
- 1x Herelink HDMI Cable
- 1x Herelink Screw Set
- 1x Herelink Cable Set
- 1x Herelink Fan
