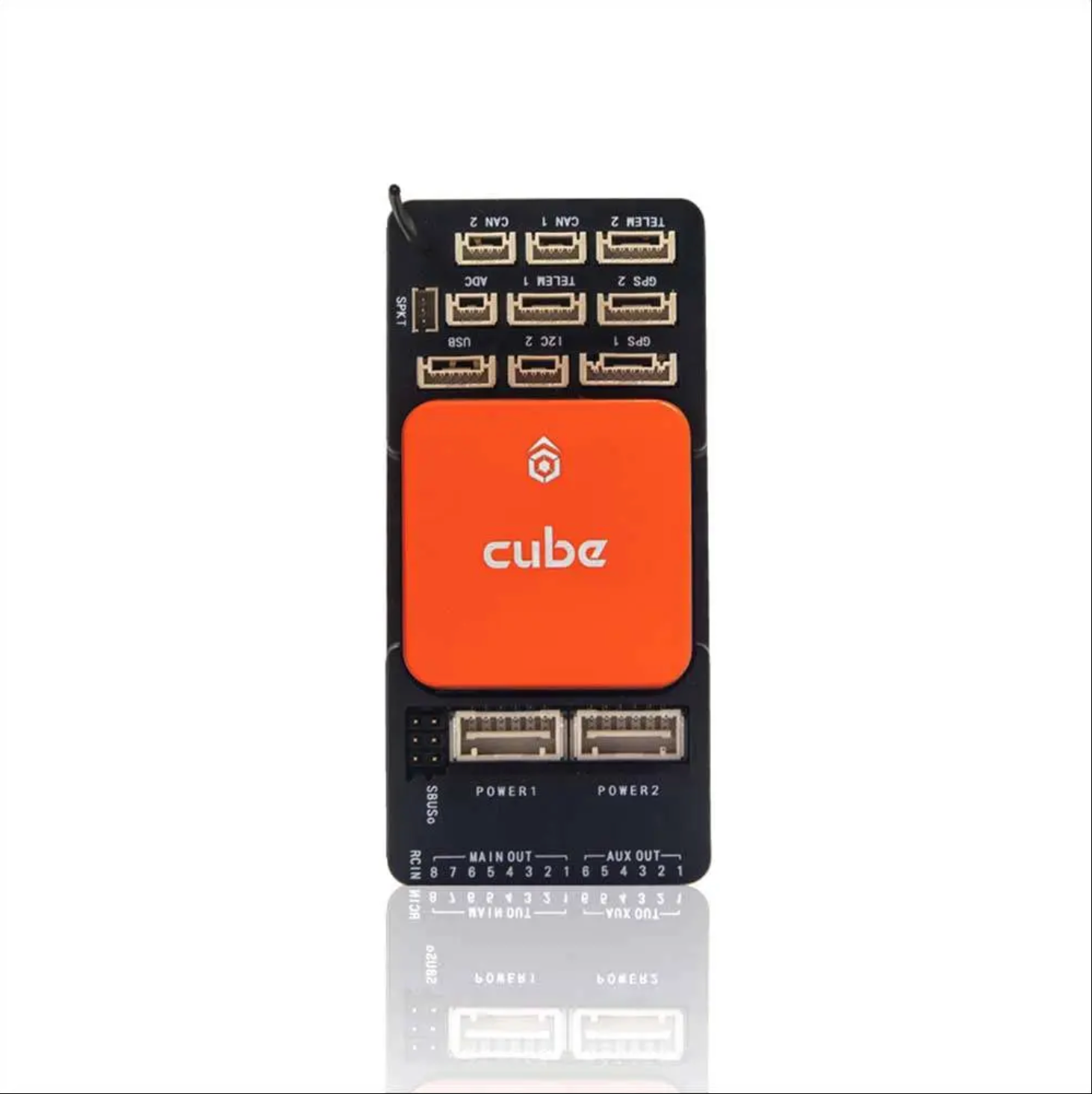

Hex The Cube Orange + Standard Set ADS-B (IMU V8)

• Sensors: Accelerometer, Gyroscope, Compass, Barometric Pressure Sensor
• Power input voltage/rated input current: 4.1-5.7 V / 2.5 A
• Power-rated output/input power: 14 W
• USB port input voltage/rated input current: 4-5.7 V / 250 mA
• Servo rail input voltage: 3.3 V / 5 V
• Not waterproof. External waterproof protection is needed
• Operation Temperature: -10 °C / 55 °C
• Cube Orange+ Housing Material: CNC Aluminum Alloy
• ADSB Carrier Board Housing Material: ABS Molding

Equipped with high-performance H7 Processor

H7 has double-precision (DP) FPU, 1MB RAM, and 400 MHz CPU processor providing high performance, extremely fast operation, and a stable solution for flight.

Flexible PWM signal voltage

PWM output supports switching between 3.3 and 5 V signal levels. Voltage switching can be done by ground control station software. This provides better compatibility with external peripherals.

• Chassis Material: CNC Aluminum Alloy (cube) + ABS Molding (Carrier Board)
• Operating Temperature: 10~ +55° IMU with temperature control
• PWM I/Os: 14
• Mavlink serial Interface: 2
• Number of GPS supported: 2
• Debug Interface: 1
• I2C Interface: 1
• CAN FD Interface: 2

Protection Function

• Smart RTL
• Battery low protection
• Geo-Fencing
• RC signal protection

Hardware

• Main Processor: STM32H753VIT6
• Coprocessor: STM32F100
• Supported RC signals: PPM / SBUS / DSM
• Power redundancy: Triple redundancy
• Sensors: Triple IMU System
• Supported firmware: Ardupilot and PX4 opensource flight controller firmware
• Supported vehicle type: Fixed-wing planes, Copters with 3-8 motors, Helicopters, VTOL planes, Rovers/boats/submarines
• Weight: 73 g

• 1x Cube Orange+
• 1x ADSB Carrier Board
• 1x Power Brick Mini
• 1x I2C Board
• 1x Buzzer Cable
• 2x CAN Cable
• 1x Power Brick Mini Cable
• 1x GPS1 Cable
• 1x Micro USB Cable
• 2x I2C Cable
• 4x Mounting Screw
• 3x 3M Large Sticker
• 2x 3M Medium Sticker
• 4x 3M Small Sticker
