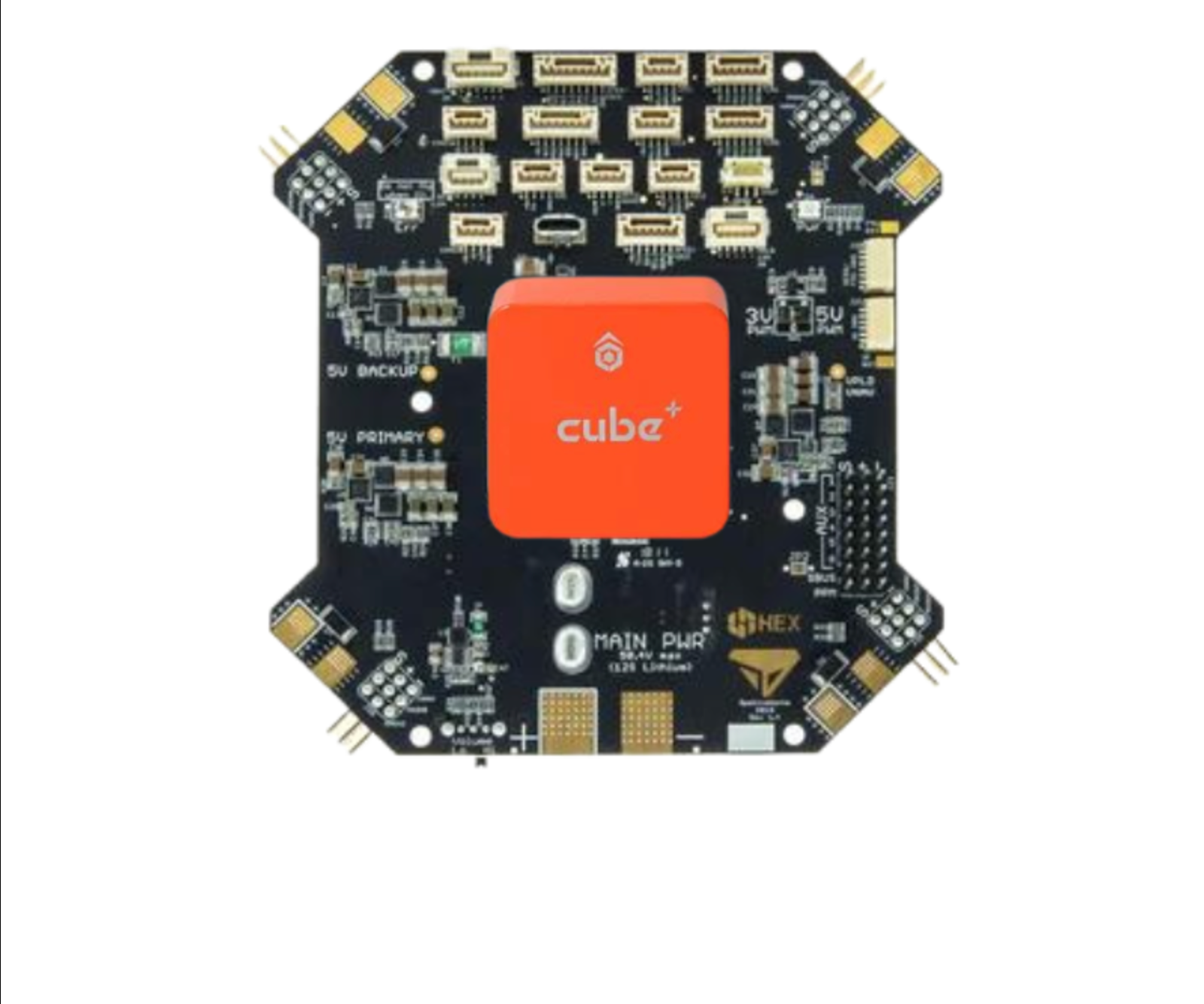

Kore Carrier Board & The Cube Orange+ (IMU V8) Combo

Kore Carrier Board & The Cube Orange+ (IMU V8) Combo

Rs. 45,000.00
Rs. 45,000.00
Sale Sold out



Kore Carrier Board & The Cube Orange+ (IMU V8) Combo

FEATURES AT-A-GLANCE

  • Up to 12-cell Lithium battery (50.4V)
  • 140A continuous current with 280A surges
  • Power and signal for ESCs conveniently located in corners
  • 12V navigation light power available at each cornerBuilt-in power distribution
  • Built-in voltage and current sense
  • Redundant power supplies for flight critical components
  • Payload connectors with resettable fuses for 5V, 12V, and direct battery power
  • Good power and error indicator lights
  • Built-in buzzer with volume control
  • Connectors for every function of Pixhawk Cube
  • Easily accessible PWM voltage level selector (3.3V or 5V)
  • Resistant to ground bounce on PWM signal
  • Connector-compatible with standard ProfiCNC carrier board
  • Connector ports for debugging IO and FMU processors

The Cube Orange+ (IMU V8)

Features

  • Faster H7 SOC with 1MB ram.
  • Upgraded triple redundant IMU sensors for extra redundancy.
  • Two sets of IMU are vibration-isolated mechanically, reducing the effect of frame vibration to state estimation.
  • IMUs are temperature-controlled by onboard heating resistors, allowing optimum working temperature of IMUs.
  • The entire flight management unit(FMU) and inertial management unit(IMU) are housed in a reatively small form factor (a cube).
  • Fully Cubepilot carrierboard compatible, all inputs and outputs go through a 80-pin DF17 connector, allowing a plug-in solution for manufacturers of commercial systems.
  • Manufacturers can design their own carrier boards to suit their specific needs now and in the future.


PACKAGE CONTENTS:

  • 1*KORE CARRIER BOARD
  • 1*I2C BOARD
  • 1*NYLON STANDOFFS SETS
  • 1*MICRO USB CABLE
  • 1*XT60 POWER CABLE
  • 1* VBATT POWER CABLE
  • 1*12V/2A POWER CABLE
  • 1*5V/1.5A POWER CABLE
  • 1*CAN CABLE
  • 1*IC2 CABLE
  • 1*TELEM CABLE
  • 1*GPS1 CABLE
  • 1*GPS2 CABLE
  • 4*SCREWS TO MOUNT Cube Orange+ (IMU V8) ONTO KORE CARRIER BOARD
